50T Rainwater Modular Tank 1000x500x500mm

I. Product Overview:

Modular Rainwater Tank is also called rainwater soakaway crates, or stormwater infiltration tank or retention tank, detention tank and attenuation tank. Doctor Rain Rainwater Harvesting Module is a part of the rainwater utilization system, which can effectively collect and store rainwater. Rainwater resources collected through Doctor Rain Rainwater Module can be used to wash toilets, sprinkle pavement, irrigate lawns, water landscape, and even be used for circulating cooling water and fire fighting water. It can alleviate the current shortage of urban water resources, and is an effective way to open source and save water.

II. Specification

Model No.	YBS-M1000

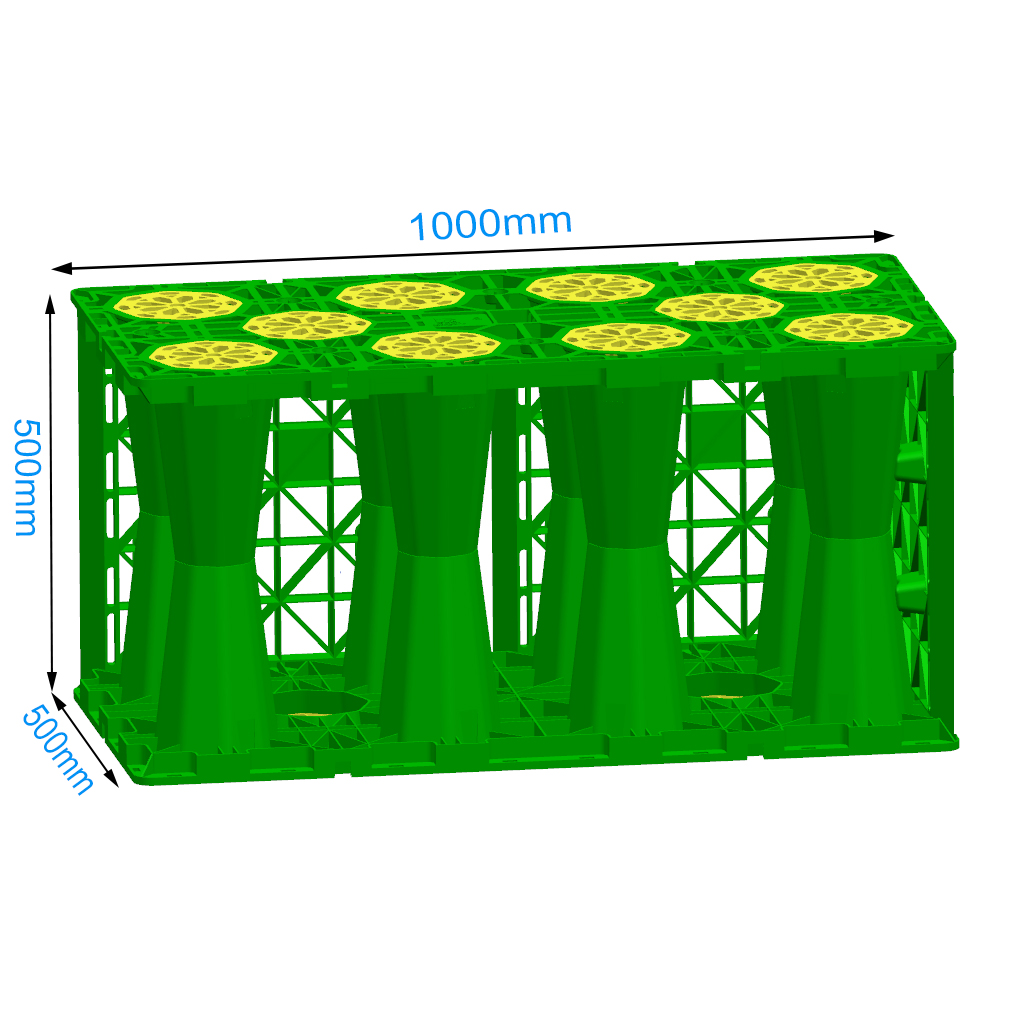

Size	1000x500x500mm
Weight	15kg/tank
Void Ratio	95%
Storage Capacity	250L/tank
Load Capacity	> 500 KN/m2
Temperature	-30℃-120℃
Material	100% Virgin PP
Color	Light Green

Packaging Details:

One 40'HQ full container only loaded with module

124x22= 2728 pcs 2728/8=341CBM

124x20=2480pcs, 186x2=372pcs, total 2480+372=2852pcs, 2852/8=356.5CBM

Notes: 124pcs/pallet (normal), 186pcs/pallet(large)

III. Advantages:

Flexible Design: The size and shape of the underground pool which made of of the modular rainwater tank can be assembled according to the need of the site.

High Loading Capacity: the vertical loading capacity of the rainwater modular tank can reach 90 tons, the lateral loading capacity can reach 62 tons.

High Void Ratio: the void space inside the rainwater tank reaches 95%,we can storage more water in it.

Long Service Life: The designd service life of the modular tank is 50 years.

Easy Installation: the assembling of the modular tank can be done just by hands, no large machines required.

Time Saving: one person can install 75 cubic meters each day.

Compact Storage: the modular tank can be piled on pallets, one 40'HC container can hold 294.4 cubic meters.

Environmental protection: the modular tank is made of 100% Recyclable PP

Money Saving: Compared with the traditional stainless steel and concrete pools, Doctor Rain's Rainwater Module reduces the time cost, transportation cost and later maintenance cost in many ways.

IV. Product Application:

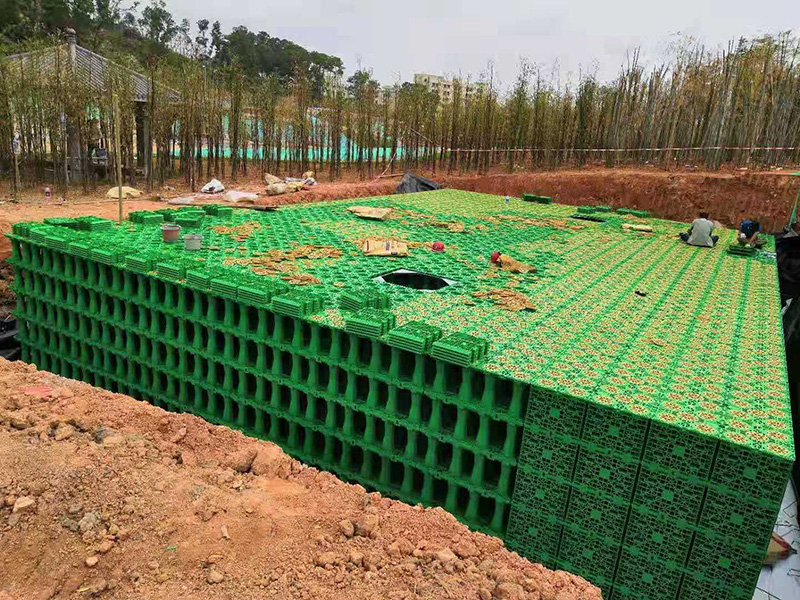

Doctor Rain's rainwater collection pool covers a wide range of areas, including urban residential areas, municipal public roads, squares, Park greening, industrial parks and so on, saving limited external space. The rainwater collection module can be installed in the driving area and cover a greater depth in the driving area. Reasonable installation of the module in the driving area must be carried out at the request of professional engineers.
