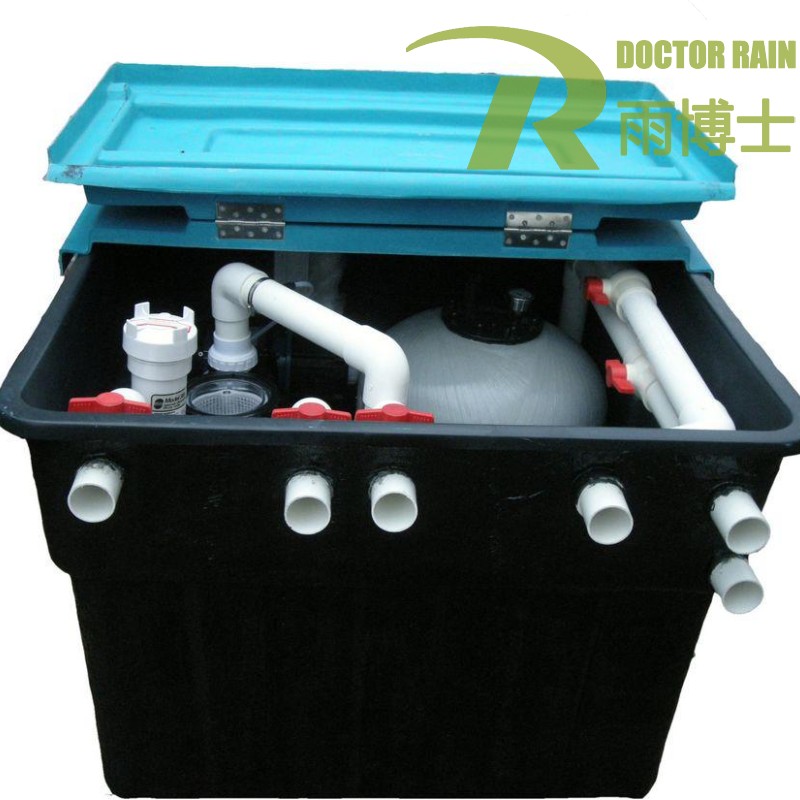

Underground Integrated Rainwater Treatment Device
Product structure:
It’s consisted of a full filtration, sewage discharge, addition and disinfection system. The entire device consists of the following components:
Glass steel shell and cover;
A glass fiber filter (equipped with multi-directional valve, filter material);
Automatic chlorine addition device; a set of valves;
Features
It can achieve high level filtration of rainwater, with filter accuracy of 50-100 microns; garbage can be cleaned through the valve to discharge the sewage. It can also add chlorine disinfection, to avoid deterioration and bad smell in the water. When the pressure goes down, clean water goes back into the tank, and water quality is maintained. Pressure goes up when the water supply is done.
| model | YBSDM-10 | YBSDM-20 |
| Major dispositions | Quartz sand filter 500, automatic addition device, multiple valves, pressure control valve | Quartz sand filter 650, addition device, multiple valves, pressure control valve |
| Flow capacity (m³/ h) | 10 | 20 |
| Working pressure（kg/cm2） | 2 | 2 |
| Sand tank filtration rate(m/h) | 50 | 50 |
| Sand cylinder filtration area(m2) | 0.22 | 0.38 |
| Pipe Size | 1.5 | 1.5 |
| Dimension | 1300*1300*1000mm | 1300*1300*1000mm |
| Material | Fiberglass | Fiberglass |
Features:
●Integrated design, a perfect combination of filtration, circulation, disinfection;
●Greatly reduce engineering work, construction costs, and construction duration
●The shell is tough, corrosion-resistant, suitable for outdoor environment or under green belt. It can survive in extreme weather condition and low temperature, ;
●There is a lid that can be separated into two parts, fully open or half open; easy maintenance.
