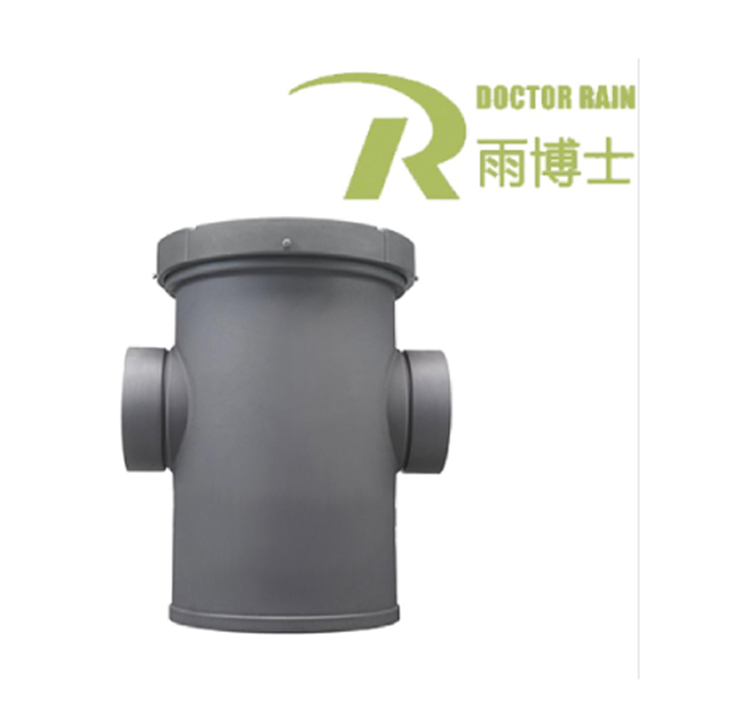

Automatic Rainwater Filtering Device
Features:
Gravity is used in this product, to separate the garbage and water automatically, and get clean rainwater.Rainwater gravity is fully considered in this product, to achieve automatic shunt and filtration. It consists of a coarse net filter, filtering material that can absorb impurities, and a fine filter. Garbage will be sorted out and suspensions will be absorbed, so the water is clean and clear. It’s easy to cleanup, by taking out the internal component, and remove the garbage, to achieve an ideal purification.
We can also make the discharge pipes with infiltration material, which doesn’t need to be connected with discharge pipes.
Applications:
Rainwater automatic filter device has high precision, because its filter diameter can be up to 1.0mm, which is generally installed after interception basket and first flush device. After the effective treatment in this device, rainwater can be directly used as irrigation water.Specifications:
| Model | YRSRF-200 | YRSRF-300 | YRSRF-500 |
| Installation size | Height 1000mm, diameter 600mm | Height 1000mm, diameter 600mm | Height 1000mm, diameter 600mm |
| Connection size | DN 200 | DN300 | DN500 |
| Filter accuracy | 1.0mm | 1.0mm | 1.0mm |
| Installation method | Level foundation, bury underground, and back fill with infiltration sand | Level foundation, bury underground, and back fill with infiltration sand | Level foundation, bury underground, and back fill with infiltration sand |
| Sewage discharge | Automatic discharge or equipped with a clean-up well | Automatic discharge or equipped with a clean-up well | Automatic discharge or equipped with a clean-up well |
| Material | PE/glass steel/stainless steel304 | PE/glass steel/stainless steel304 |
PE/glass steel/stainless steel304 |
