Electric Rainwater Discarding-flow Device
Features:

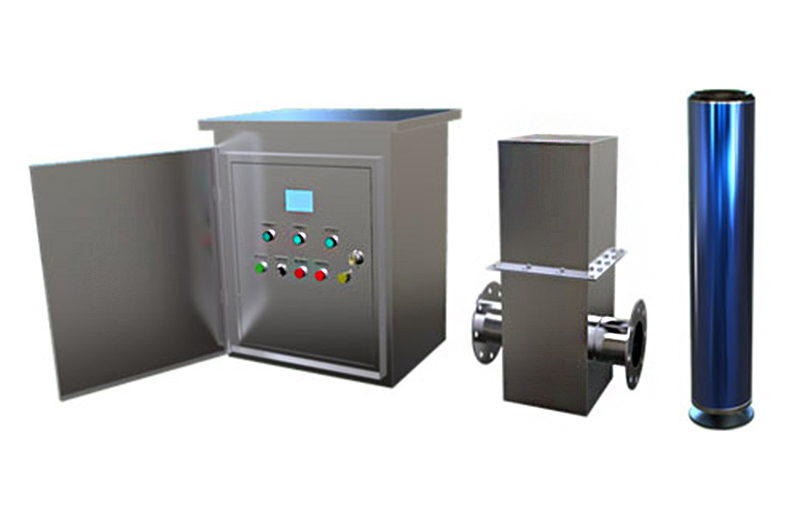

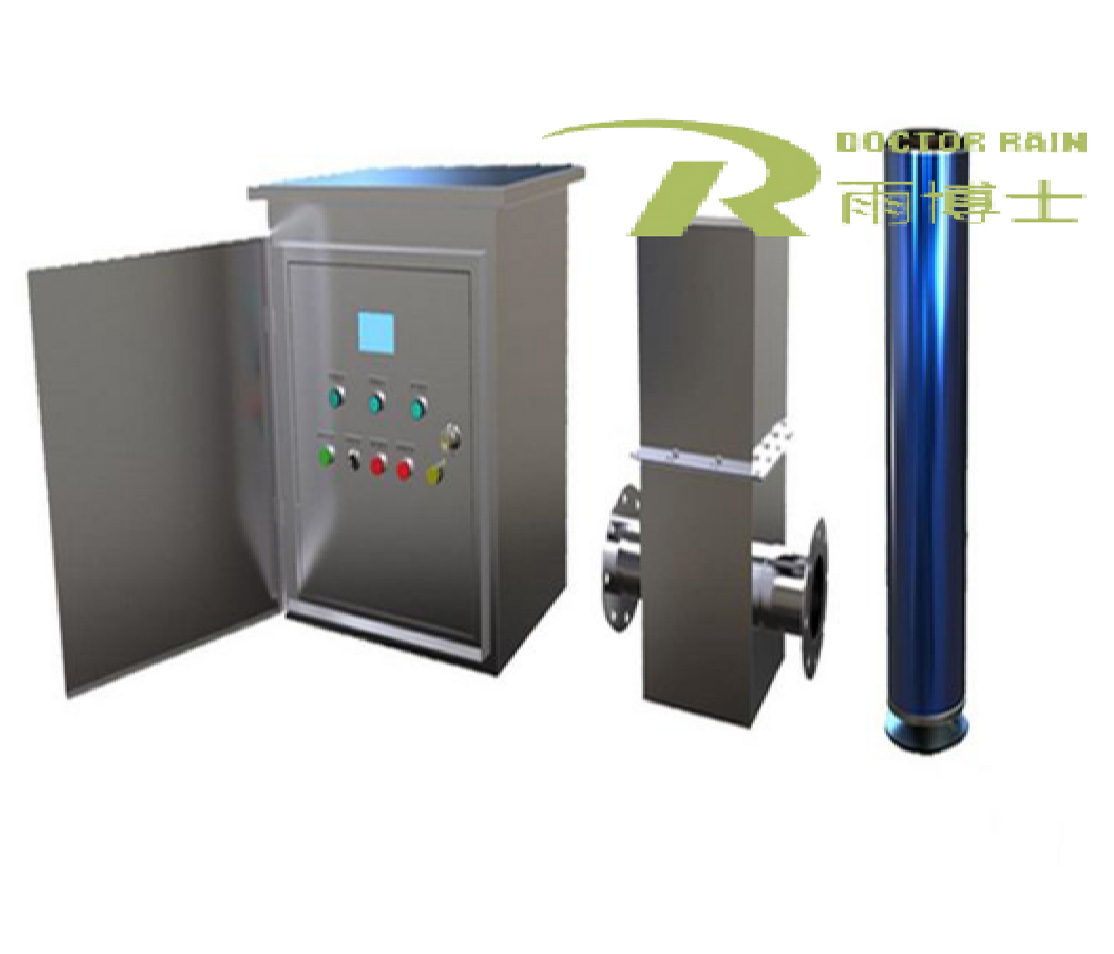

Electric rainwater split-flow device is composed of rain water meter, PLC controller and stainless steel shunt device. It can precisely control the automatic discharge of the polluted rainwater in the early stage. It can filter and discharge rainwater, and help achieve harvesting of higher-quality rainwater in the rest of the system. The device can be done to monitor the rainfall, first flush flow, rainfall frequency, and contribute to an ideal rainwater system.Applications:
This type is suitable for installation in gravity and siphon rainwater pipes, both indoor and outdoor.
Specifications:
| Item | YBSQL-E200 | YBSQL-E300 |
| Source | 220v/50Hz | 220v/50Hz |
| Control method | Rainfall control type | Rainfall control type |
| Pipe Size | Inlet and outlet DN200 | Inlet and outlet DN300 |
| First flush flow | 2mm (set), rain gauge control | 2mm (set), raine gauge control |
| Discharge outlet | DN100 | DN100 |
| Material | stainless steel304 |
stainless steel304 |
